Features and advantages:
With high degree of portability and automation, the instrument can measure all kinds of samples below 26mm in diameter (such as 1 inch standard core). With low power and automatic temperature control, the instrument can meet the installation requirements of most laboratories and also adapt to the use environment in the field. It is an ideal choice for core sample detection.
Technical Indicators：
▪ Working frequency：7MHz， magnetic field strength：>0.16T， magnet temperature control：nonlinear PID automatic constant temperature control
▪ Minimum echo interval：TE≤100us，Maximum number of echoes：NE≥60000
▪ Test samples：less than 26mm in diameter, less than 40mm in height, solid or solution or solid-liquid mixtures
▪ Equipment volume：520*360*360mm，equipment weight：<40kg

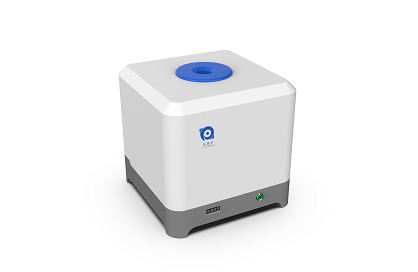

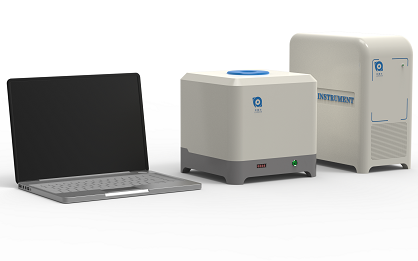

LMR-30 is independent research and development of science and technology, a probe magnets with NMR spectrometer module are independent of each other's universal nuclear magnetic device, magnet using nonlinear PID automatic temperature control mode, the magnetic field uniformity and good stability, NMR spectrometer using the latest integrated circuit design, integrating rf emission and reception function, low power consumption, good stability,High SNR advantage.
The standard of the product test sample tube diameter of 30 mm, the working frequency of equipment for 7 MHZ, magnet material for samarium cobalt permanent magnet, temperature tolerance and better uniformity, the adoption of new self shielding design, static magnetic field and radio frequency field are blocked inside the probe, applicable to the standard of core analysis, nuclear magnetic resonance (NMR) logging, coal, frozen soil, the porosity of the cement materials survey and research, etc.
